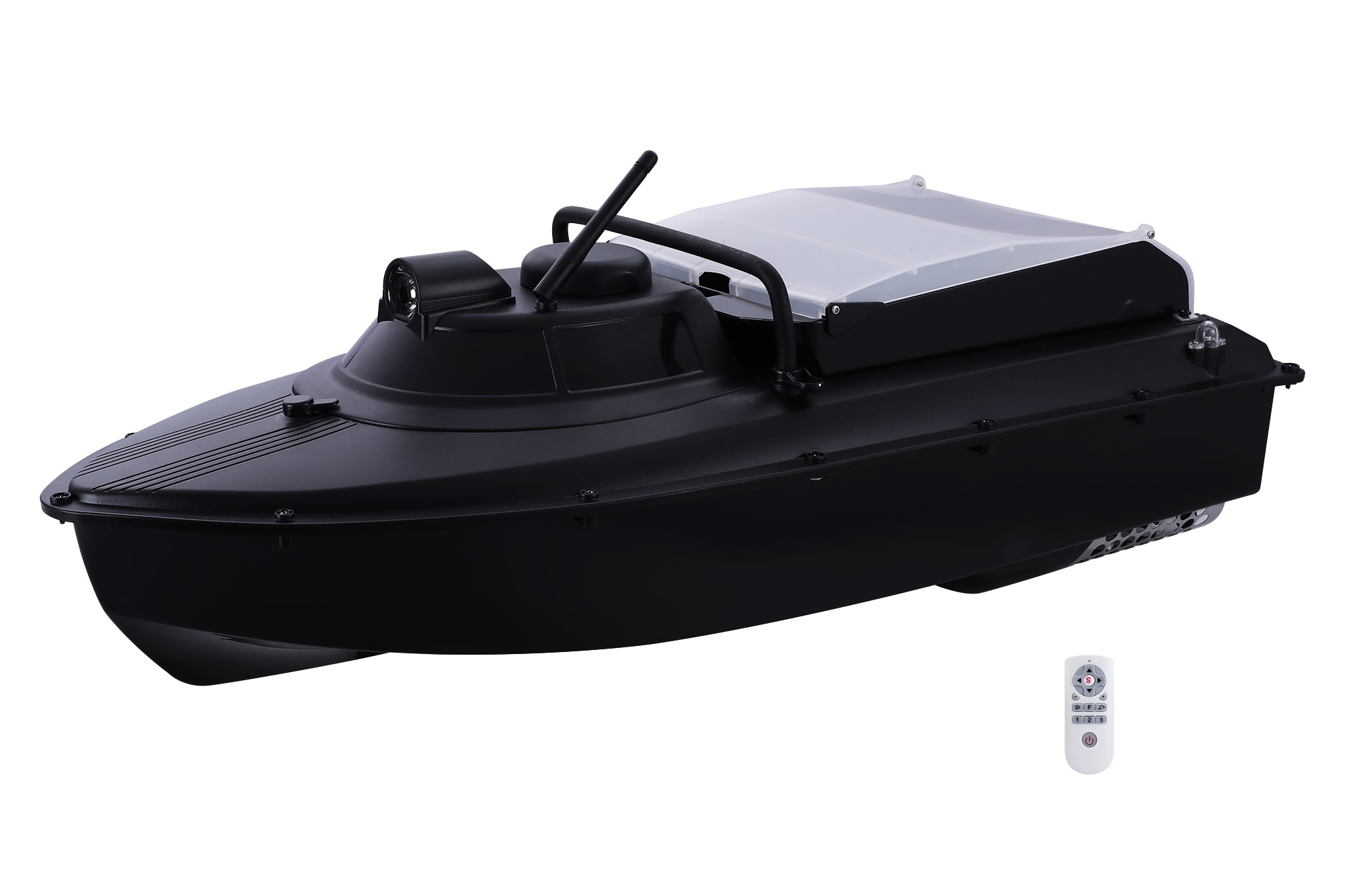

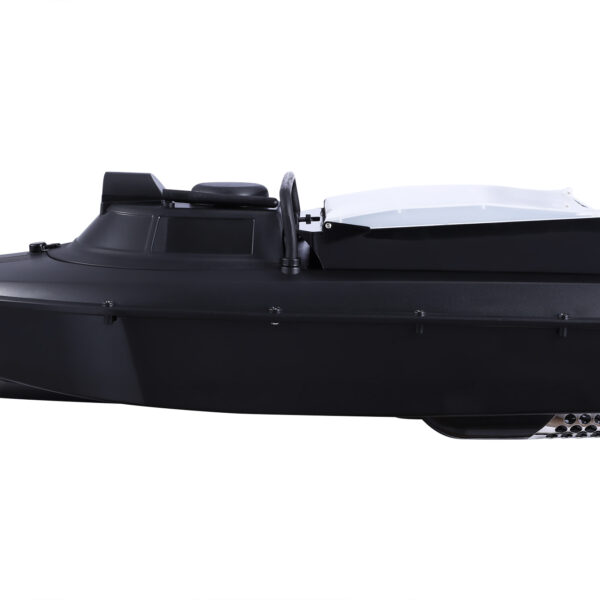

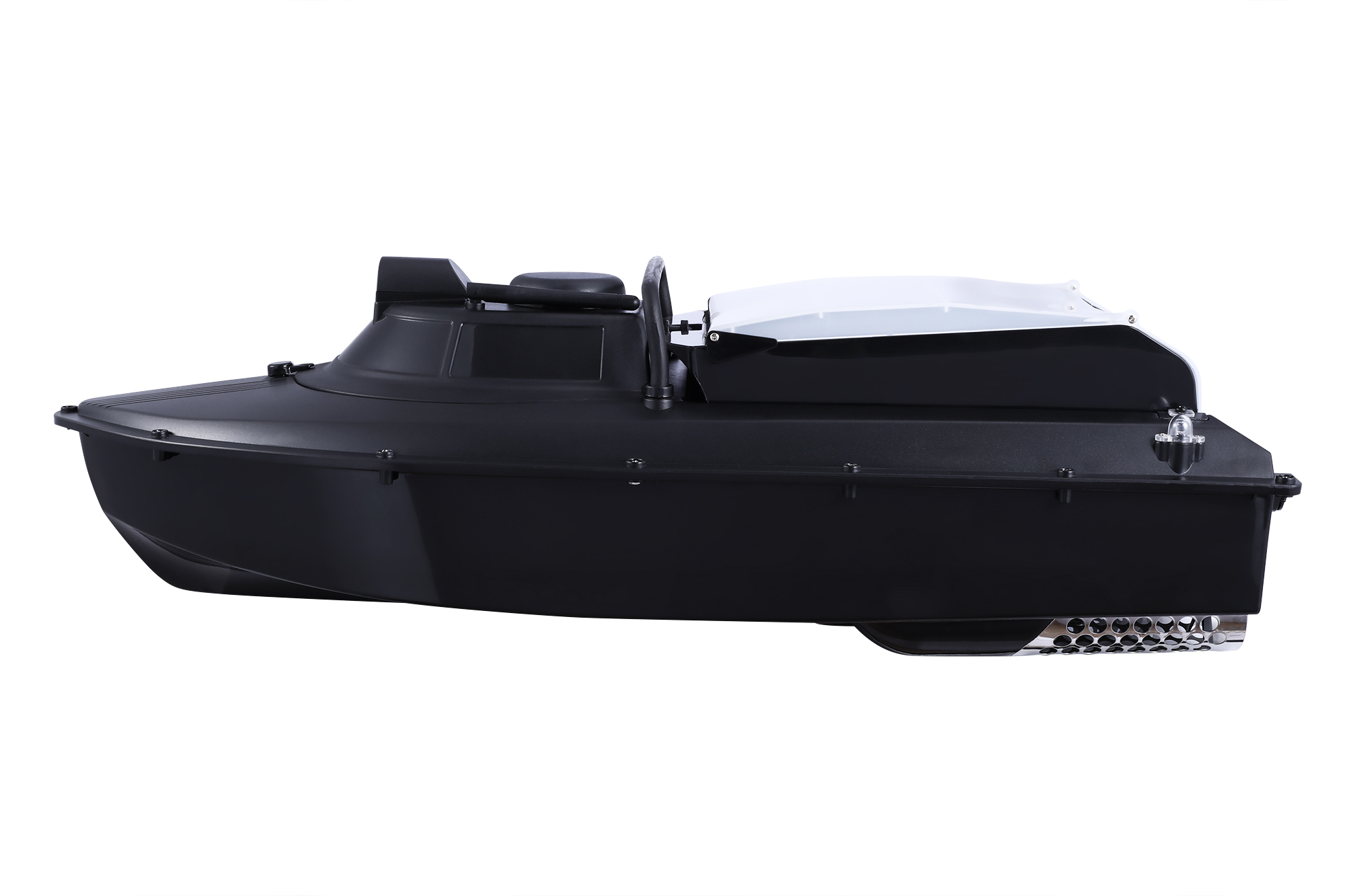

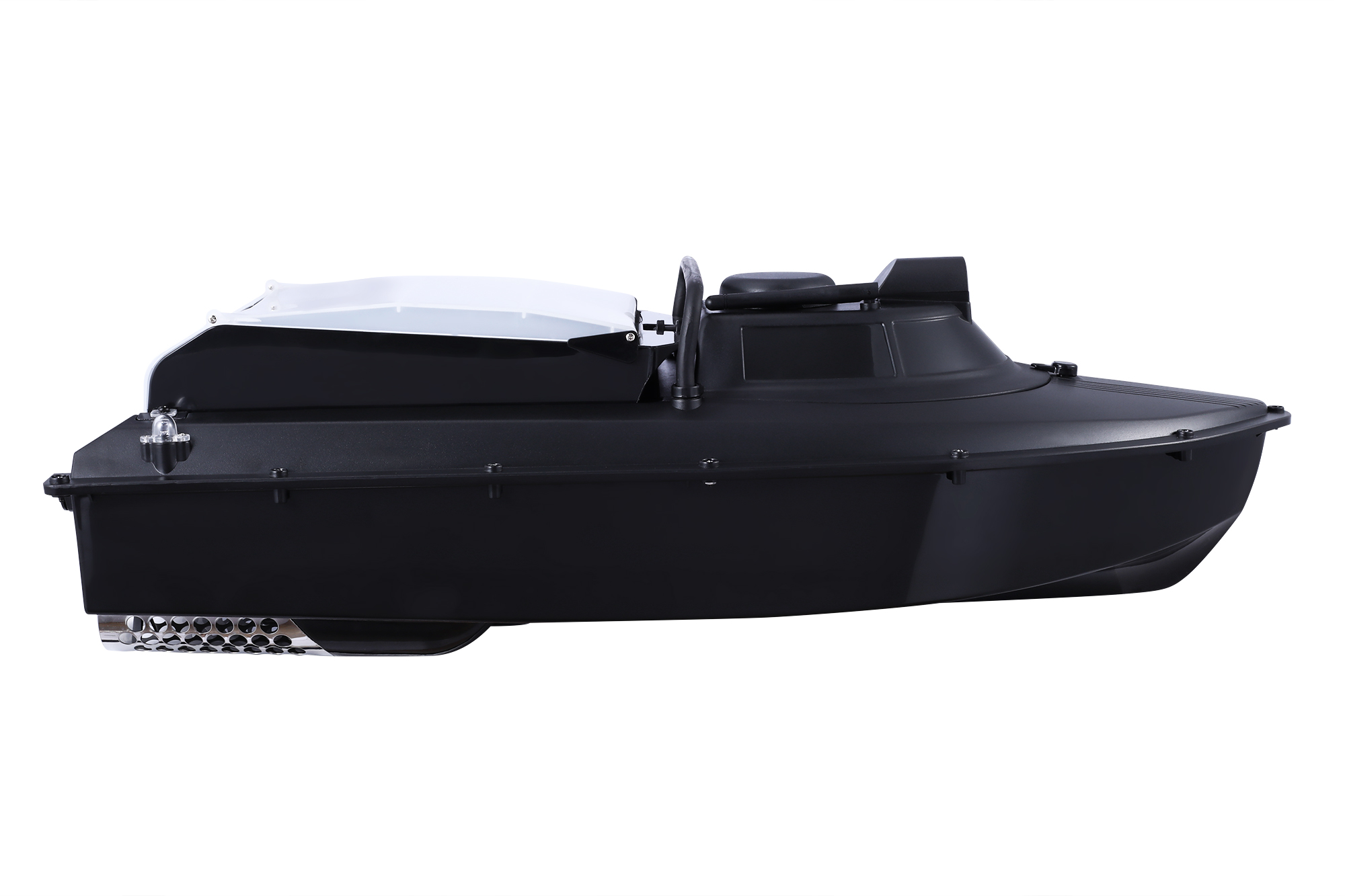

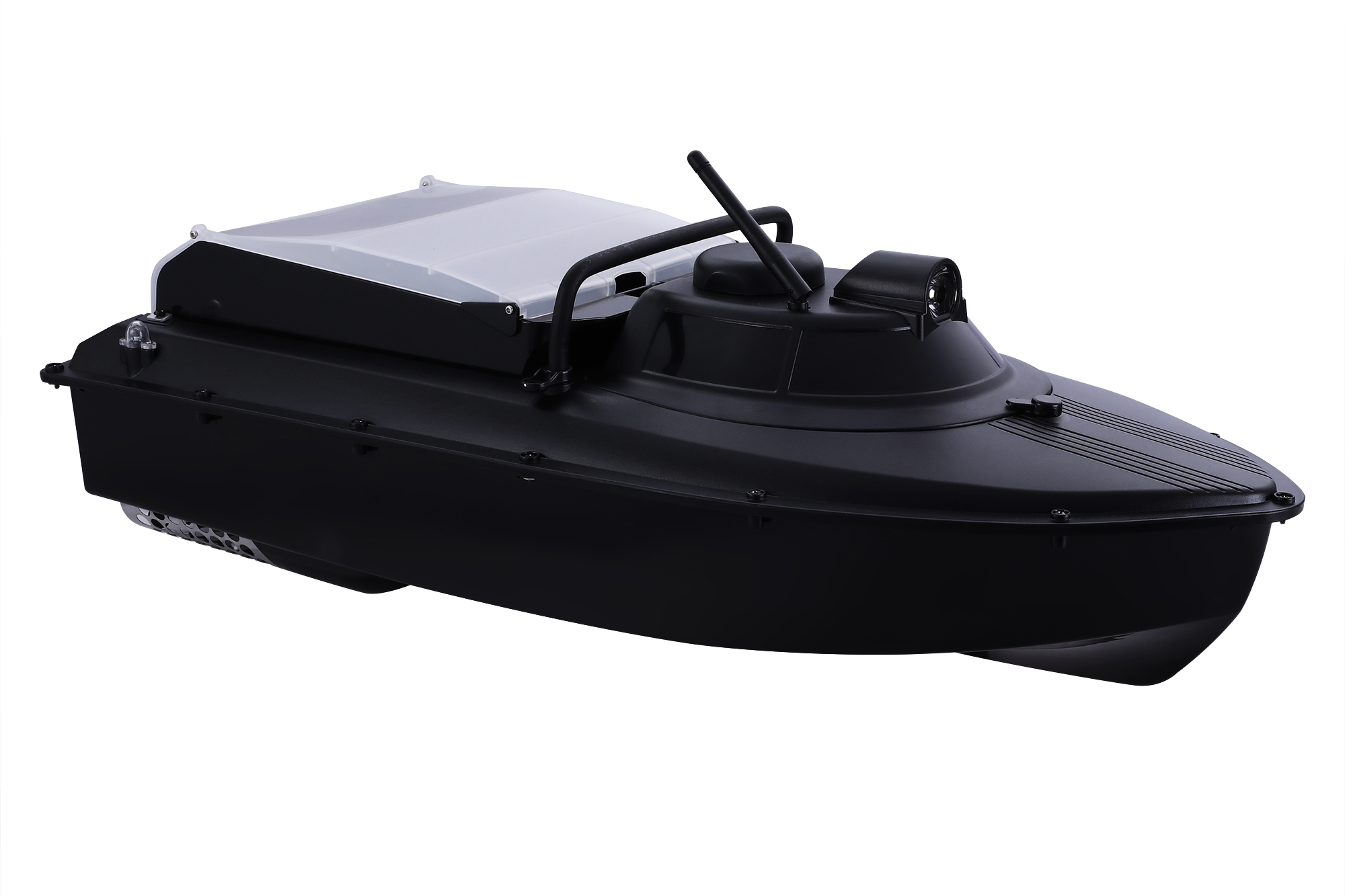

JABO Futterboot BAITBOAT automatische Navigation Rückkehr bis 8 GPS Speiche
1.JABO2AN-3 features precise positioning and precise navigation. Positioning, navigation error radius is less than 5 meters, the error is basically within 2 meters when testing
2.JABO2AN-3 can store 3 target nests. Once the target nests are identified for the first time, they can be nested (released) within the radius of 1000 meters on the same surface and different fishing positions. This can achieve accurate positioning and increase the fishing scale. The chance of more fishing also saves on the resources of the bait and increases the enjoyment of fishing. Especially in the occasion of night fishing, ordinary boating can not achieve accurate nesting (free hooking). Even if there is no moonlight in the night, the JABO2AN-3 can be used to correct nests (release hooks).
3.JABO2AN-3 working frequency 2.4g, allowing multiple warships to be used simultaneously in the same fishing ground.
4.Each time you use JABO2AN-3, you must manually (automatically) set the starting point. After the successful setting of the starting point, the warship can safely return to “home” after each departure. JABO2AN also automatically sets the starting point when the starting point is not manually set. Since it takes time to automatically set the starting point to receive the satellite positioning, the starting point of the automatic setting may be relatively far.
5.Each time the ship’s power switch is turned on, the docking crew will automatically begin to establish contact with the navigation satellites. It usually takes 2 to 5 minutes to establish a successful connection.

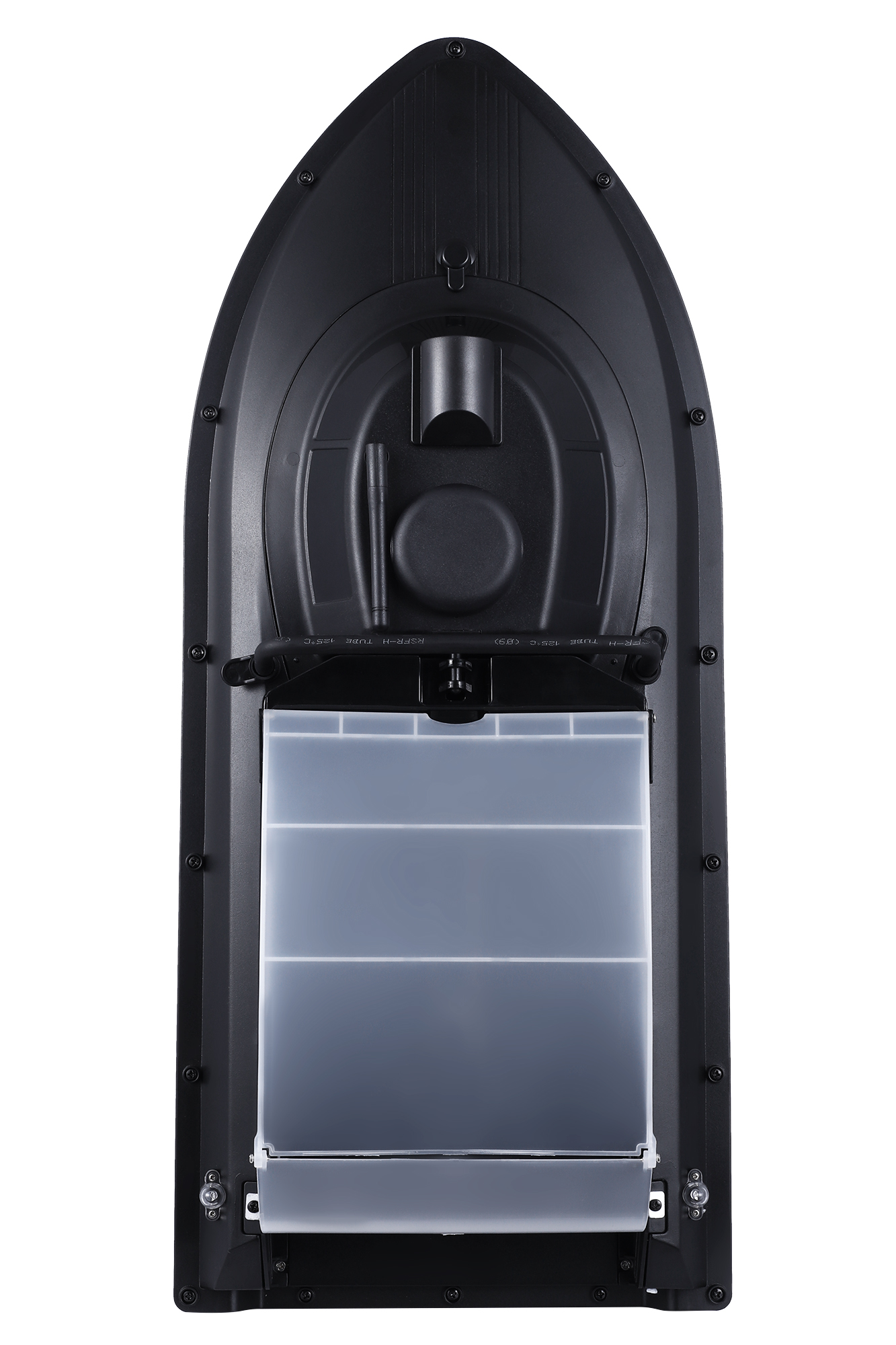

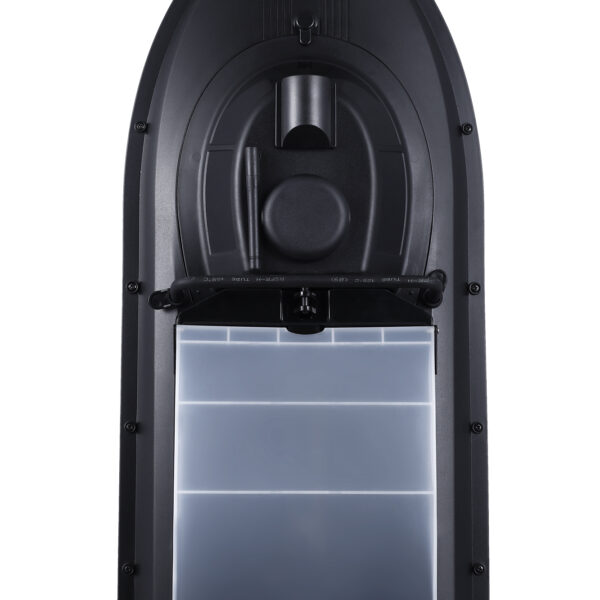

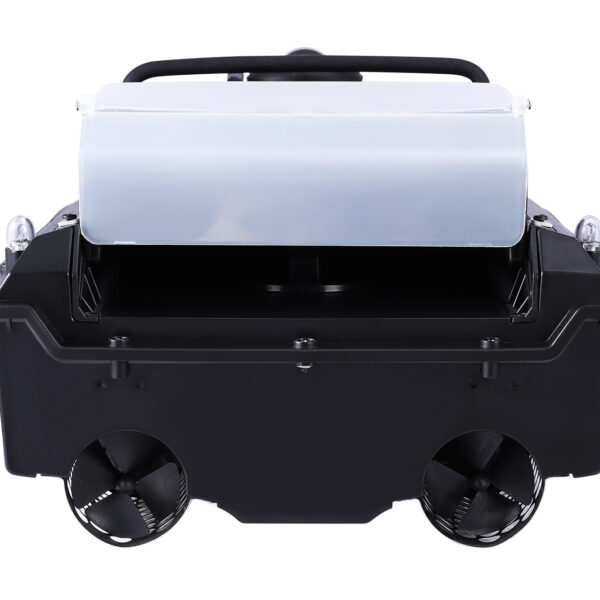

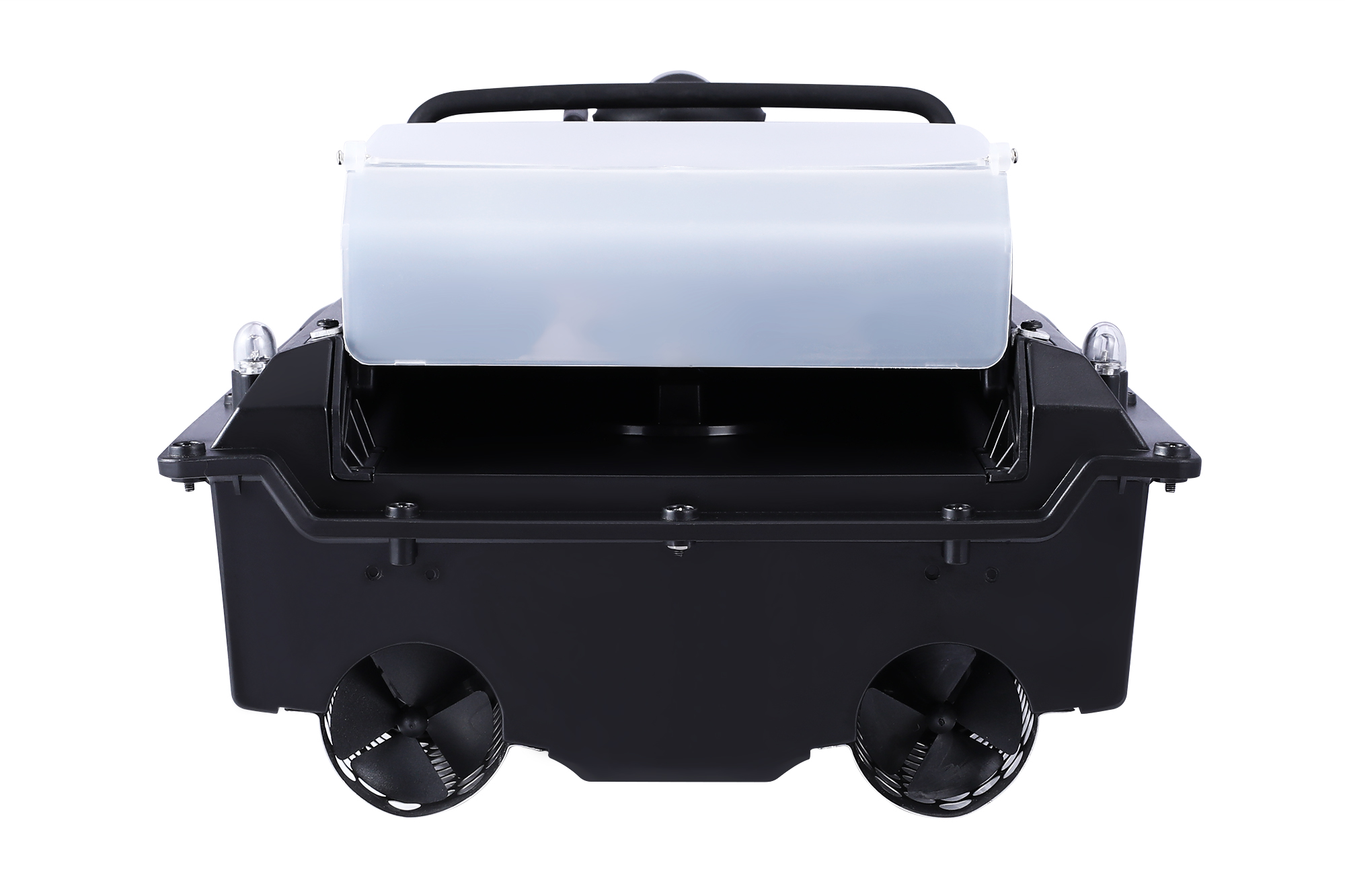

6.The unique design of the automatic bait boat silo has the advantage that the den nests can be visually observed, and the bait silo is automatically reset to run more smoothly. These features are even more pronounced after automatic navigation.
7. The power part is driven by a double 540 motor, and the spring coupling makes the boat very quiet.

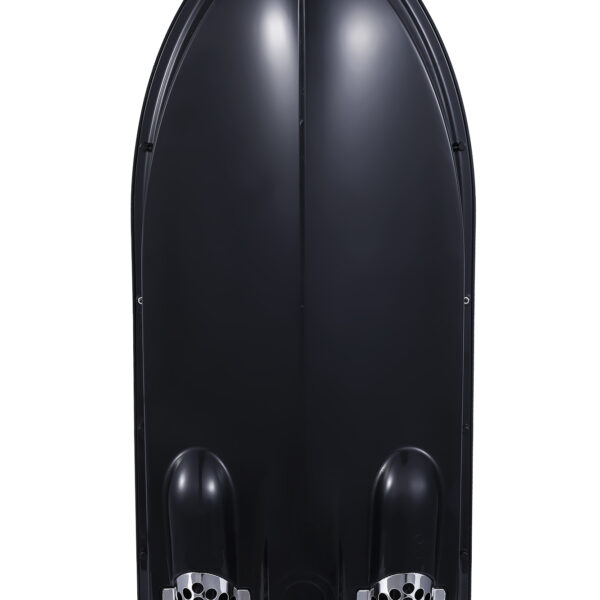

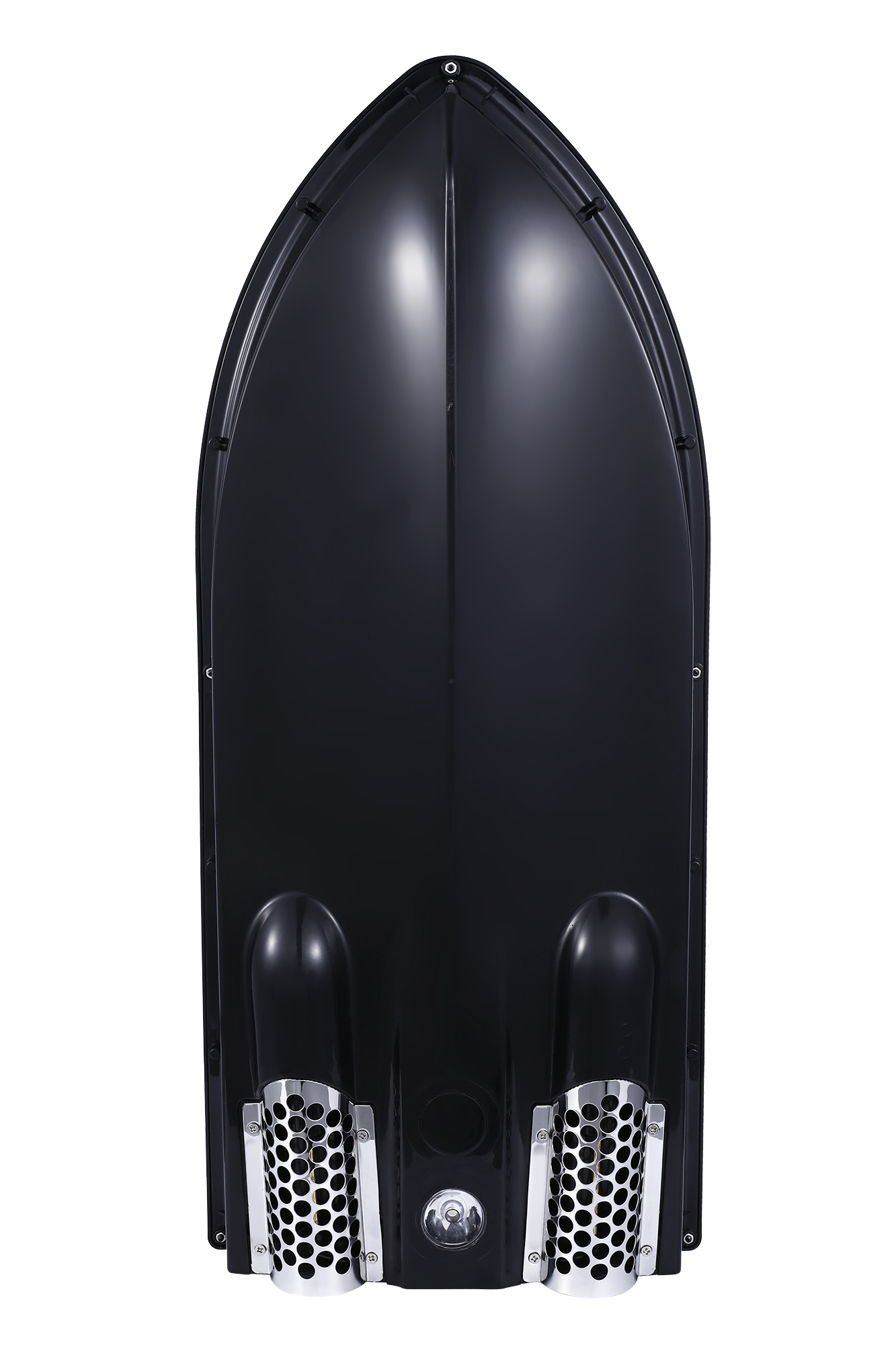

8. The design of the built-in propeller overcomes the defect that the external propeller is easy to be entangled with foreign materials. It is suitable for use in the occasions where there are aquatic plants and floating objects on the water, and also prolongs the service life of the propeller.

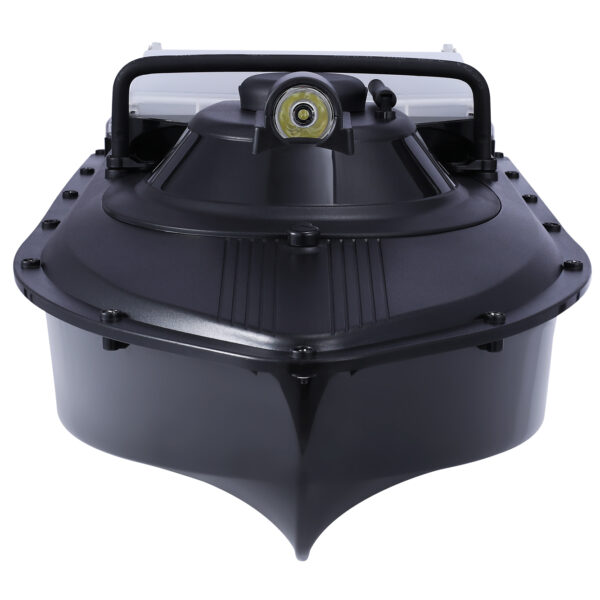

9. In order to be suitable for night operation, two navigation lights of different colors are set on the ship. At night, the operator can control and recognize the navigation direction of the ship according to the different colors of the indicator lights. At the same time, in order to facilitate the fishing night fishing, JABO2AN-3 is equipped with a night light that can be remotely controlled.
10.JABO2AN is not suitable for use in oceans, rivers (running water environment) and windy environments.
11.When it rains on cloudy days, the navigation function may weaken or even fail due to the satellite signal being shielded by clouds!
Main Specifications:
JABO2AN-3 bait boat:
1 Dimensions 615*265*180mm
2 Weight: 2.75KG (including 10A lithium battery)
3.15KG (including 20A lithium battery)
3. Power Supply: 10A/3.7V Li-ion battery can work for 2 hours
20A/3.7V Li-ion battery can work for 4 hours
4. Speed: 60 meters/minute
5. remote control distance: About 200 meters in water.
6. Drive Components: Double 540 motor
7. main actions: forward, backward, turn right, turn left, release hook (feeding material).
8. Bait load: 1kg
9. GPS and Beidou dual-mode positioning can store 3 target dens.
10. electronic compass guide + satellite positioning navigation, navigation accuracy radius is less than 5 meters.

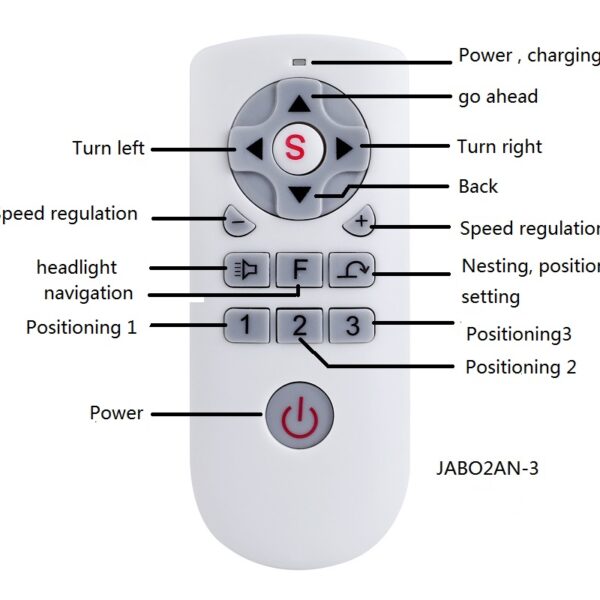

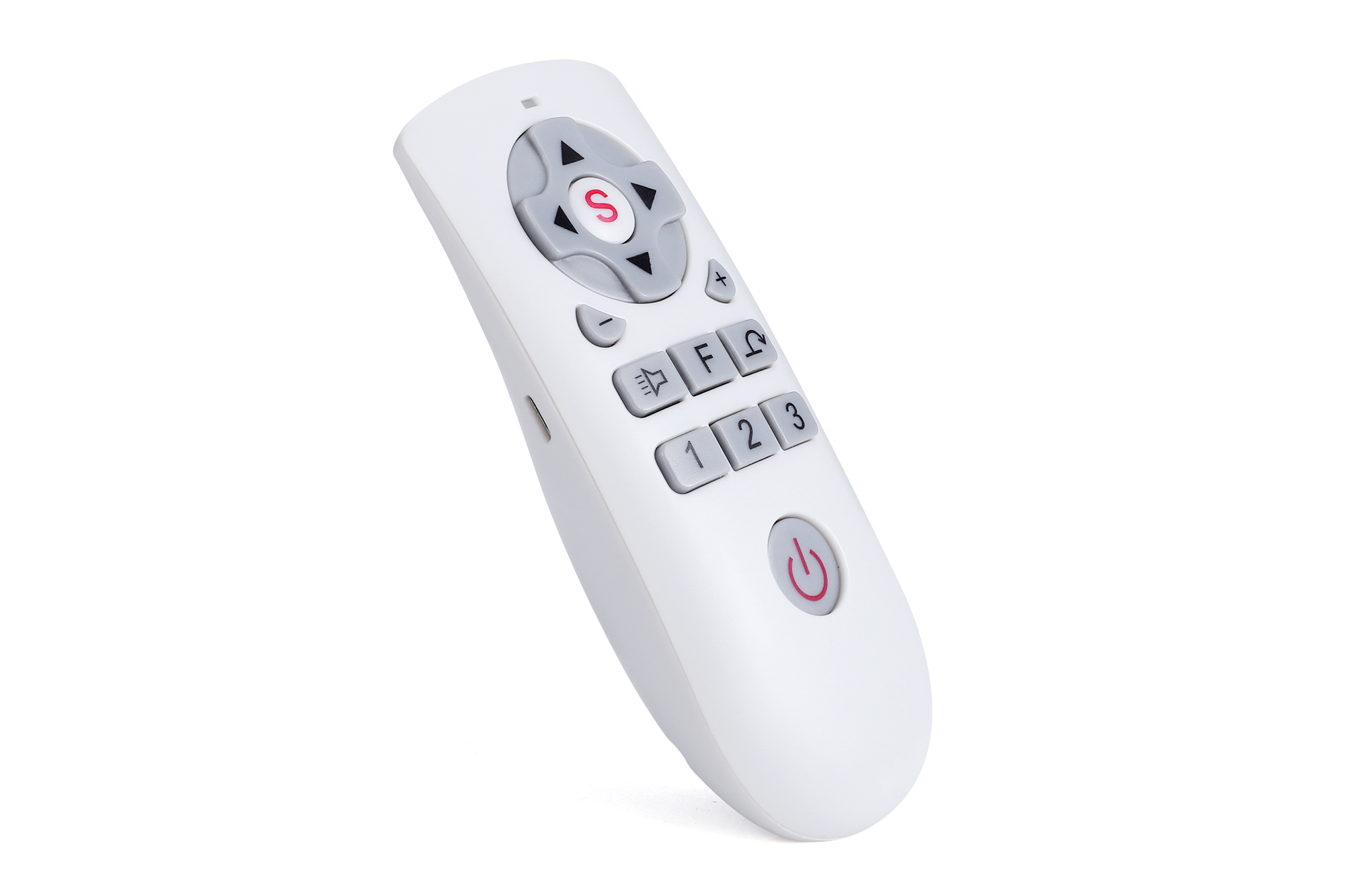

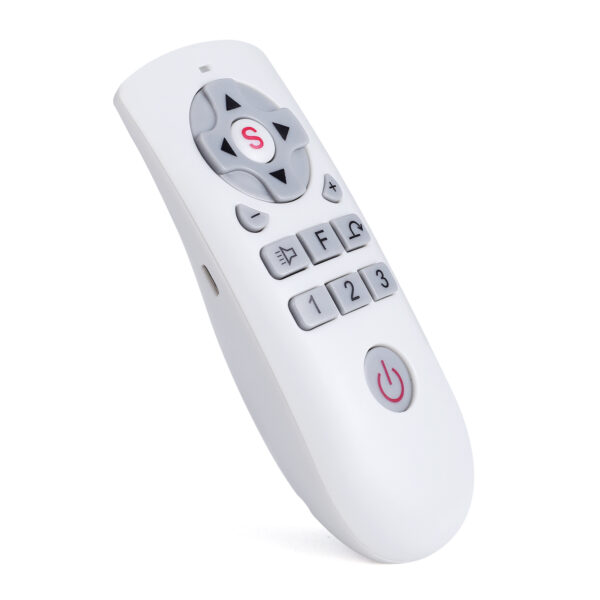

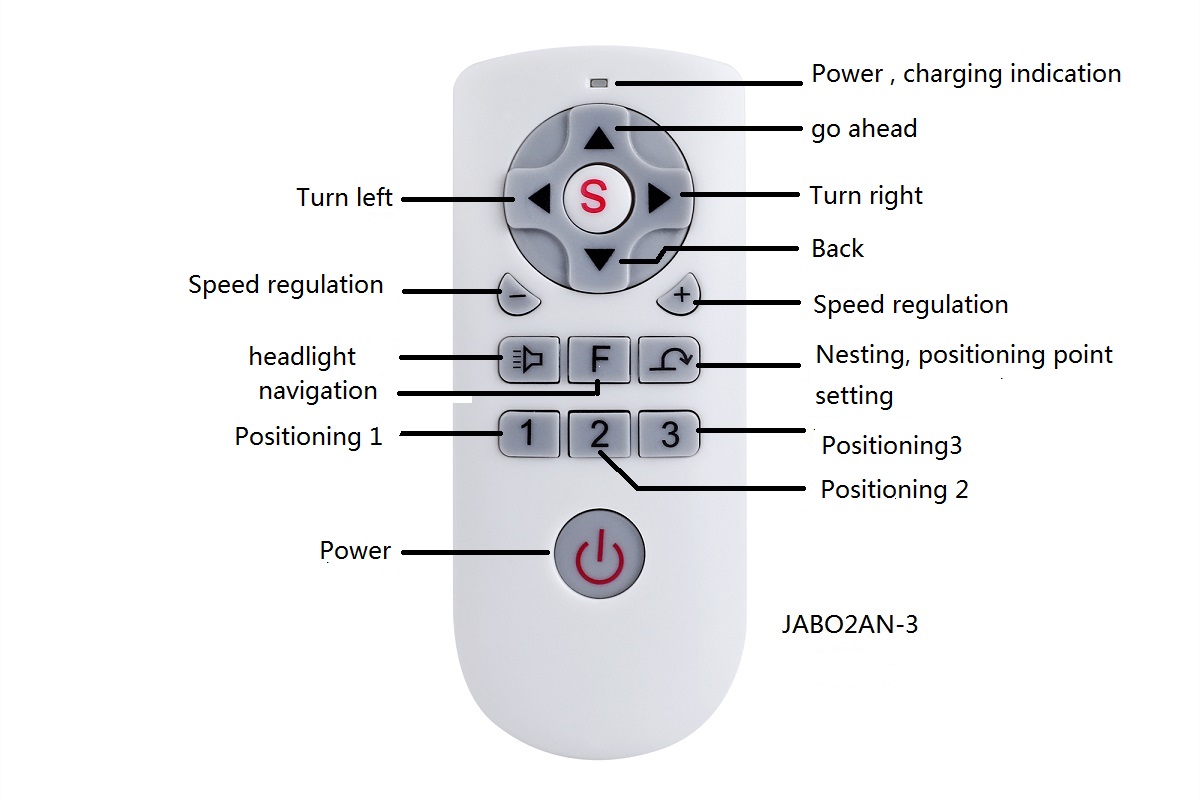

Remote
control: 118*49*31mm (Built-in antenna)
Power supply: 3.7v lithium battery.
Remote control frequency: 2.4G
Remote control distance:200 meters
GPS accuracy: radius ≤ 5m
GPS satellite capture time: 2 – 5 minutes
